Vibration speed sensor

  • MLV-9268 type vibration speed sensor
MLV-9268 type vibration speed sensor

MLV-9268 type vibration speed sensor

  • Product description: MLV-9268 type vibration speed sensor
  • INQUIRY
You can directly replace the MLV-9268 vibration speed sensor PHILIPS PR9268 sensor
The frequency response:
10 ~ 1000Hz (3dB)
Cultural sensitivity:
28.5mv / mm s-1, + 5%
(measured at 80Hz, 10mm / s)
The linearity: 3%
The maximum amplitude:
MLV-9268:2000um (peak to peak)
"Allow acceleration: 10g in the horizontal direction, vertical direction 2G
The transverse sensitivity: less than 5% maximum
The work and use temperature range:
-20 C to +120 C
-20 C to +200 C (order)

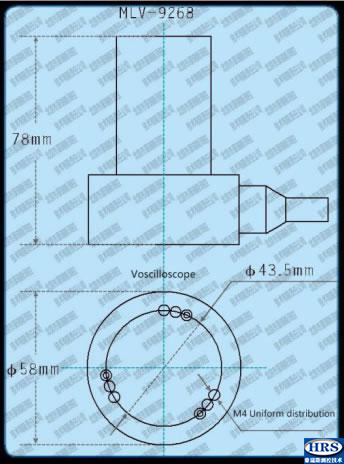

Exterior and mounting dimensions:

The installation and use of direction:
MLV-9268H: round base, limited to horizontal direction;
MLV-9268V: round base, limited to vertical direction;
3: resistance to dust and damp environment
Relative humidity: 65% non condensing
The physical parameters:
MLV-9268: 78mm, 58mm in diameter
Weight: about 280g
The order specifications (4 kinds):
MLV-9268H
MLV-9268HT
MLV-9268V
MLV-9268VT
