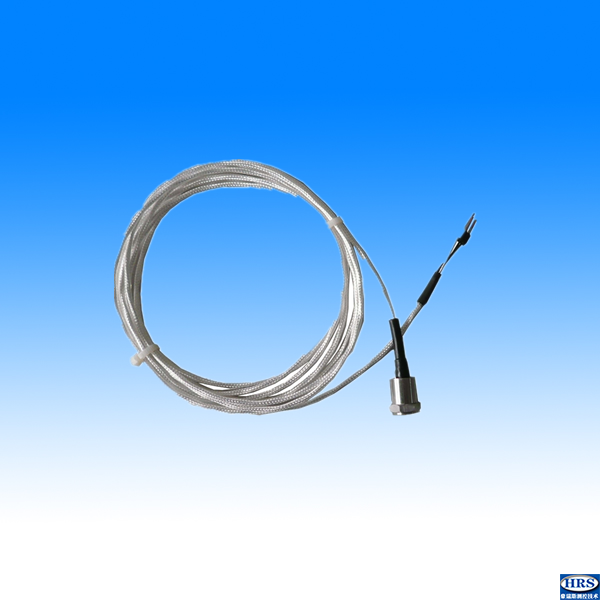

MLA-11-type piezoelectric accelerometer is specially designed for generator coil core vibration measurement. Its biggest feature is free from electromagnetic interference, a wide frequency range. Dual floating output, especially for use in strong electromagnetic interference situations. Can also be used for transmission gear, bearing fault diagnosis.
Specifications:
1. Frequency response: 0.5Hz-10000Hz
(Note: the actual measurement system of low-frequency response by the circuit parameters, etc.)
2. Sensitivity: 16.0pc / m / s2
3. Transverse sensitivity ratio: <5%
4. Temperature range: ≤ 100 ℃
5. Overall dimensions: Φ13 × 18
6. Weight: 10g
7. outlet way: with 3 meters long wire (or according to user requirements)
